PM Hoist
Introduction for movement of man & material, access to external works are sure to simplify the construction & also to make the work safer
Play Video
Features
- Single-cage / Double-cage
- Carries Men & Material Vertically
- Fixed speed / Varied speed:(30m/min; 0-63m/min, 0-96m/min)
- Can be used from stage of 2nd slab .
- Complementing Tower Crane in terms of vertical material handling.
- Power Consumption from 15KW to 78 KWfor regular hoists.

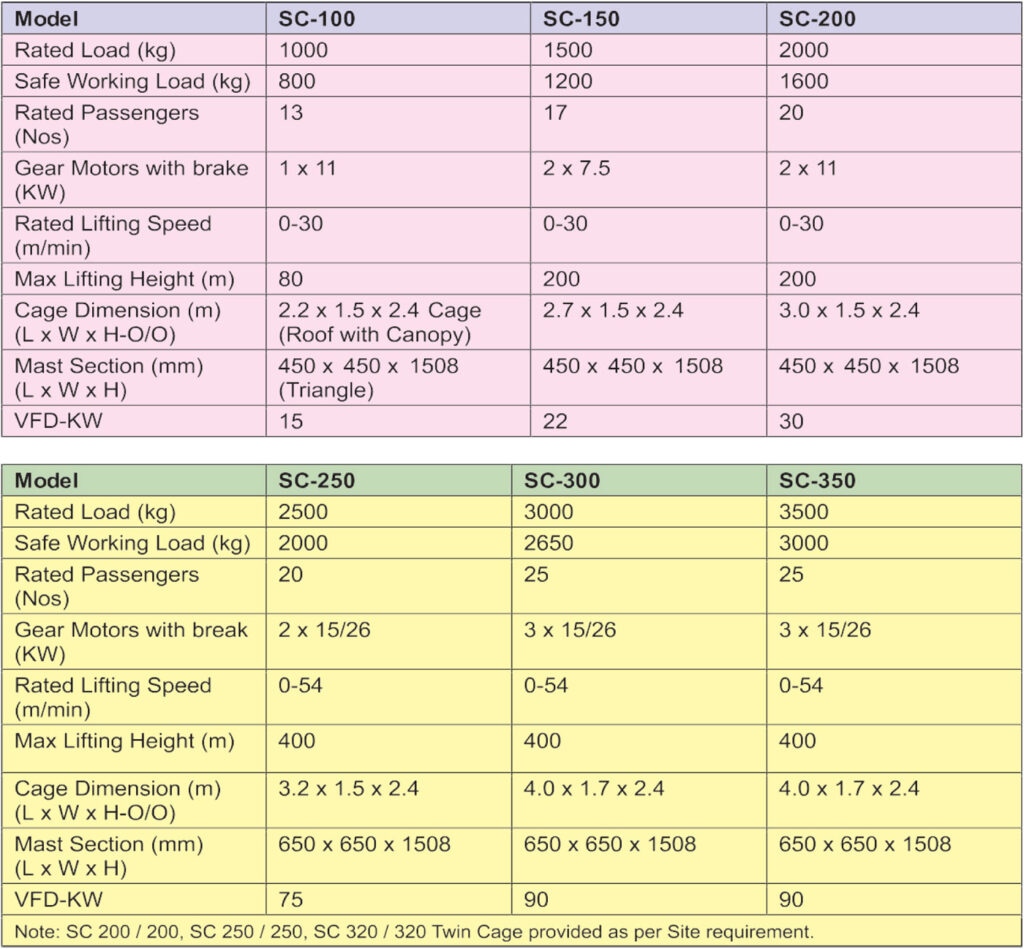

Technical Specifications
- Rated Load: 1 to 3.8 Ton
- Rated Passengers: 10 - 25 No
- Rated Lifting Speed: 33m/min
- Max. Lifting Ht: 400mtrs.
Cage Dimension: As per Customer requirement
- Mast Dimension: 450X450X1508 & 650X650X1508 mm
- Apart from above mentioned specifications, wecan supply as per customer requirements.
