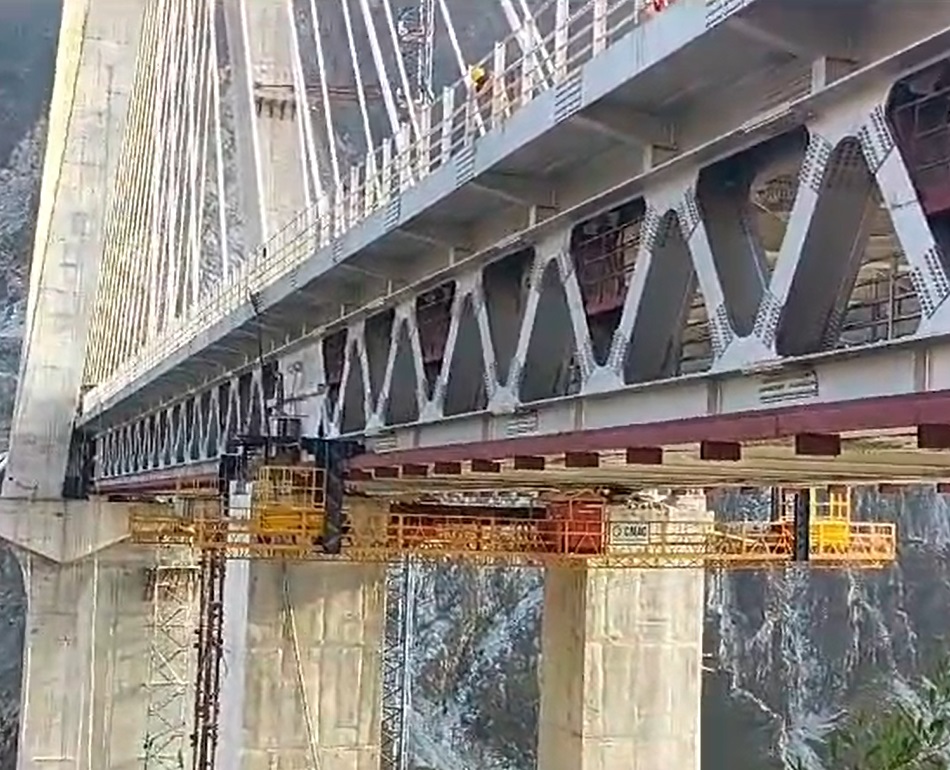

Suspended Rope Platform
Suspended rope platform is a twin hoist motor driven compact platform for use in space restricted areas.This temporarily installed suspended access equipment is multi-purpose and highly efficient construction machinery applicable to work at heights.
Play Video
Features of Suspended Rope Platform
It is an ideal for applications such as cleaning for

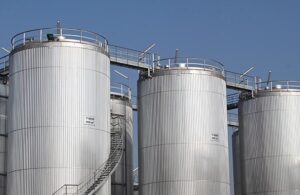

- Big size tanks

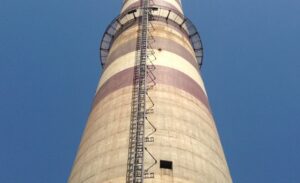

- High chimneys

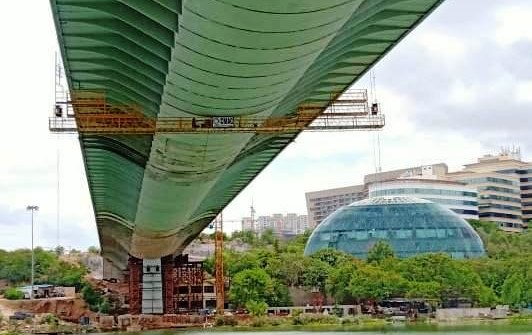

- Bridges and large dams

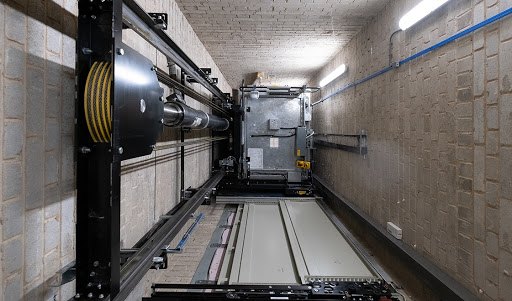

- installation of elevators
- Welding of seagoing ship in shipbuilding industry etc
Technical Specifications
Model
CMAC 250
CMAC 800
CMAC 1000
Rated Capacity (Kg)
250 Kg
800 Kg
1 Ton
Rated Speed ( M/min)
8-9 Mtrs/Min
8-10 Mtrs/Min
9 - 11 Mtrs/Min
Rated Power (Kw)
1 x 1.8 KW
2 x 1.8 KW
2 x 2.2 KW
Hoist Model
LTD 6.3
LTD 80
LTD 100
Safety Model
LSB 30
LSB 30 ii
LSF 310
Platform Dimensions L x W x H (mm)
1200X810X970
690X7500X1200
690X7500X1200
Weight of suspension mechanism(Kg)
200 KG
400 KG
400 KG
Counter weight
500 KG
1000 KG
1200 KG
Lifting Height Upto
100 Meters
200 Meters
200 Meters
Steel wire rope Dia
8.6 mm
8.6 mm
10.2 mm
